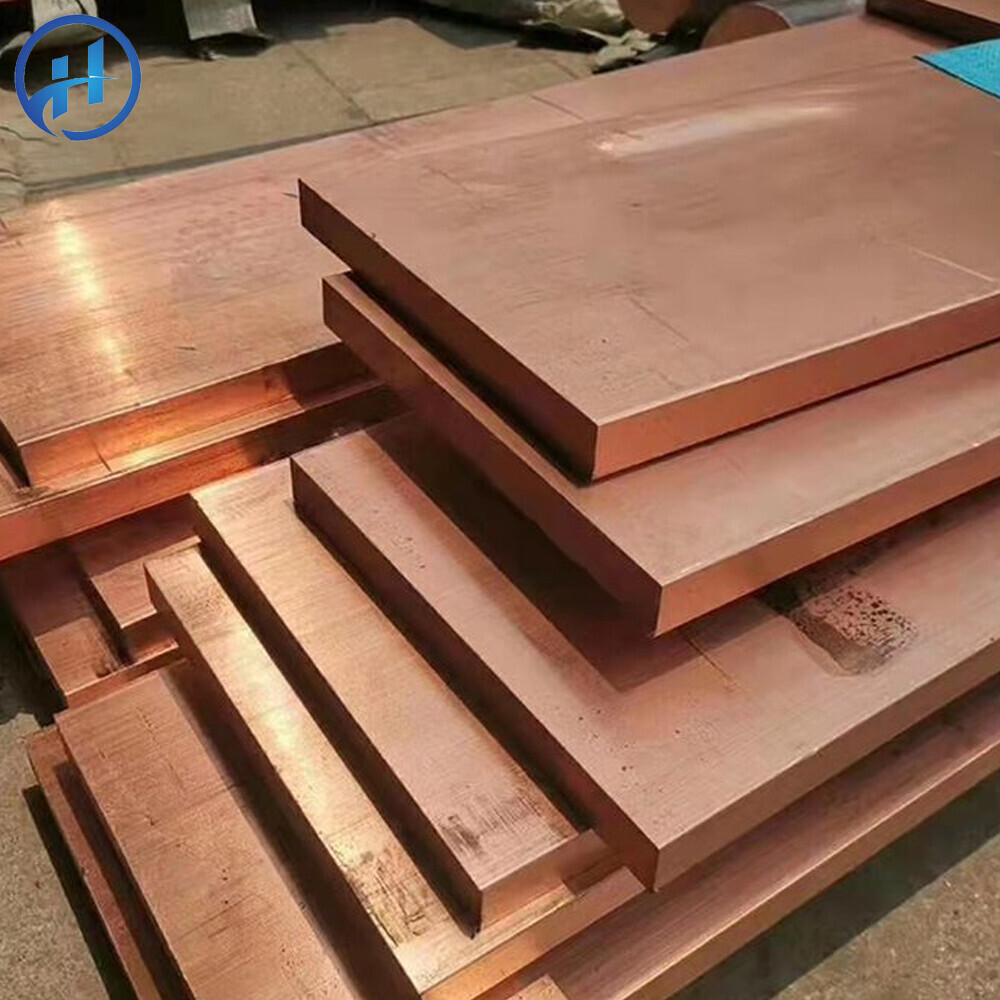

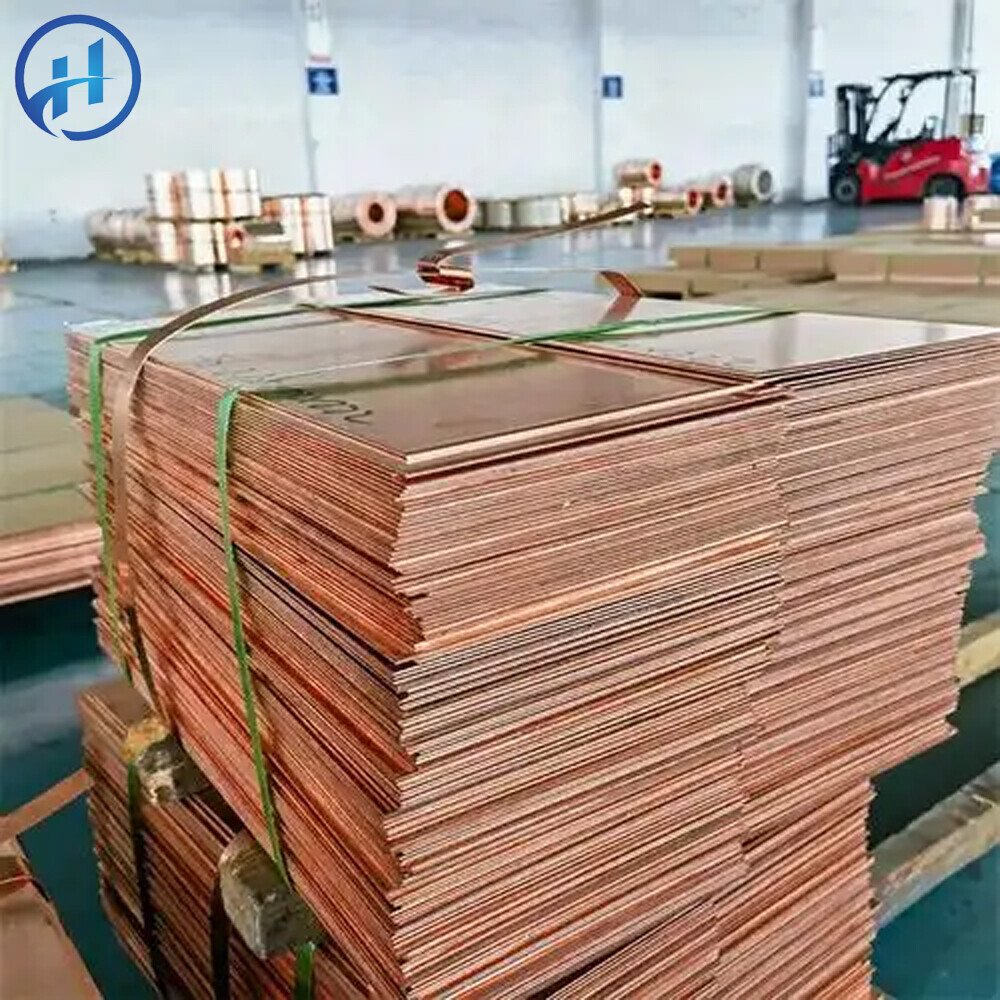

C12000/TP1 Copper Plate
C12000 copper plate is made from a high-purity electrolytic copper, also known as ETP copper (Electrolytic Tough Pitch Copper). Its main component is copper, with a content of more than 99.9%, and it also contains small amounts of impurity elements such as oxygen, iron and sulfur.
Phone : +86 13256775538
Whatsapp : +86 13256775538
Email : Shylock@hw-steel.com
Contact Us

Product Description

C12000 copper plate has excellent electrical and thermal conductivity due to its high purity copper matrix. In addition, it has good processing properties and can be formed by various cold and hot working processes, such as forging, rolling, drawing and stamping. This makes C12000 copper widely used in the manufacturing of wires, cables, electronic components, automotive parts, HVAC and refrigeration equipment and other fields. In addition to its excellent physical properties, C12000 copper plate also has good corrosion resistance, especially in humid environment and soil. This allows it to maintain stable performance even in situations where prolonged exposure to harsh environments is required.


Product Parameters

Thickness0.1-300mm or customizedLength100-12000mm or customized
Width10-3000mm or customizedStandardASTM, AISI, JIS, GB, DIN, EN, etc.
BrandC10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
SurfaceGrinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing as Required
CertificationISO, SGS, BV, etc.Payment MethodFOB, CRF, CIF, EXW Acceptable, etc.
Port of LoadingAny Port in ChinaDelivery TimeReceived 30% after deposit 7-15 working days



Chemical Composition

Copper+SilverWith Ag:TinSn:ZincZn:LeadPb:NickelIt is:IronFe:
≥ 99.90≤ 0.002≤ 0.005≤ 0.005≤ 0.005≤ 0.01
AntimonySb:SulphurS:ArsenicAs:BismuthBi:OxygenO:PhosphorusP:
≤ 0.002≤ 0.005≤ 0.002≤ 0.002≤ 0.010.005～0.012



Mechanical Properties

Tensile StrengthKb (MPa):ElongationD10 (%):Hardness:
245～345≥ 875～120HV



Scope of Application

Uses And Applications of Copper
Power IndustryPower transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
Electronic IndustryElectric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuitCopper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical IndustryThe main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosionVarious media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation IndustryIn the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraftCopper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical IndustriesIn addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heatingThe induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light IndustryCopper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
Emerging Industries and High-tech FieldsCopper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.


Product Show


Contact Us

Video Showcase

Partner

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A:  If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A:  Standard export packaging or as required
