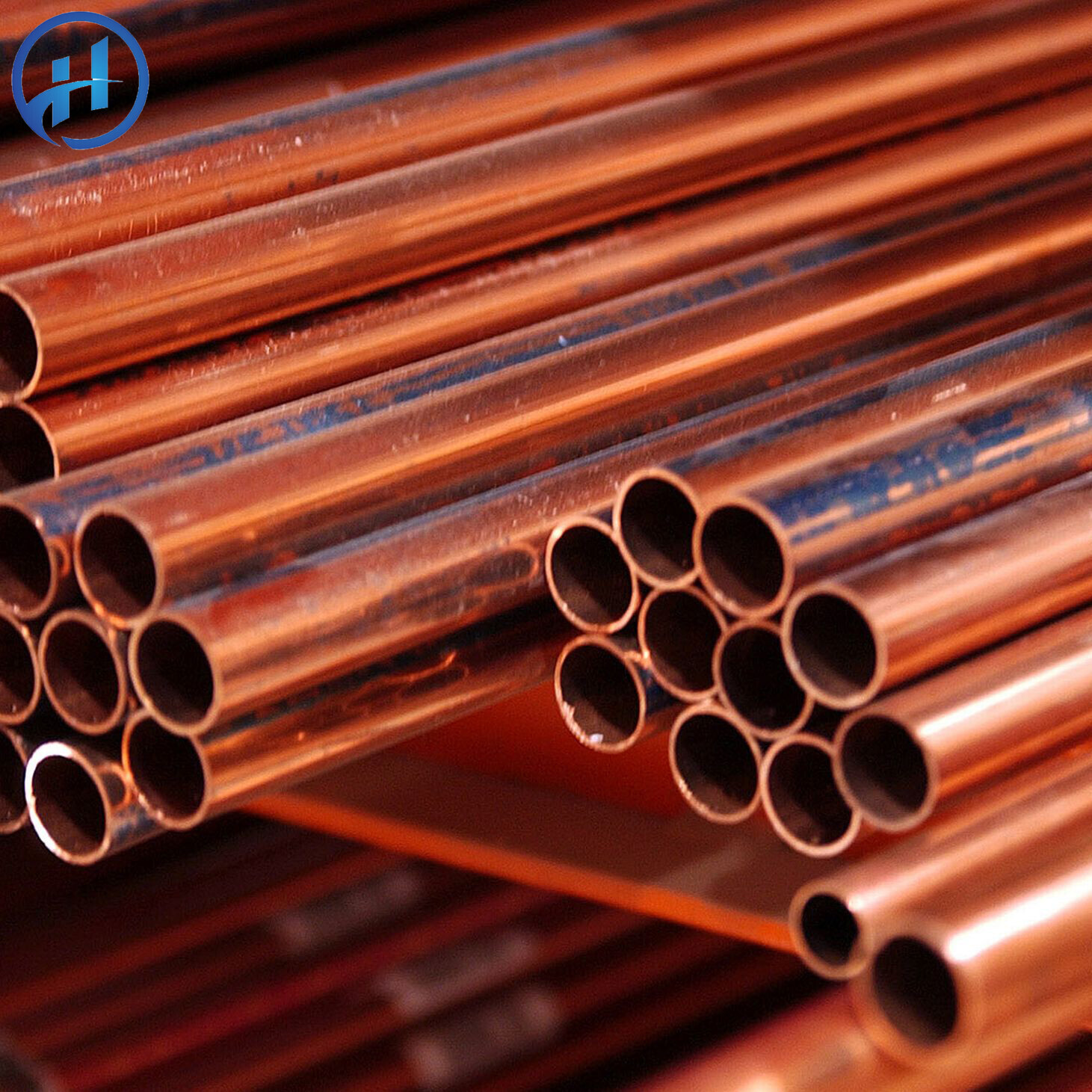

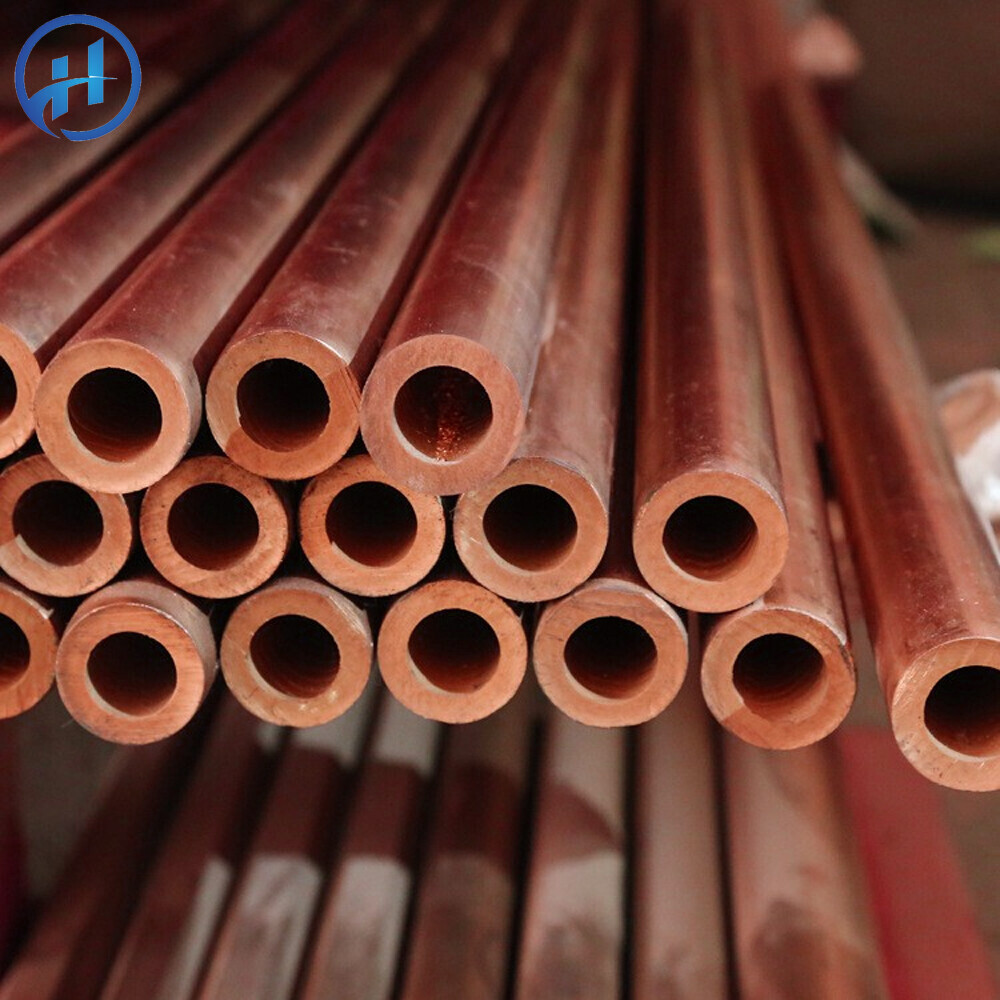

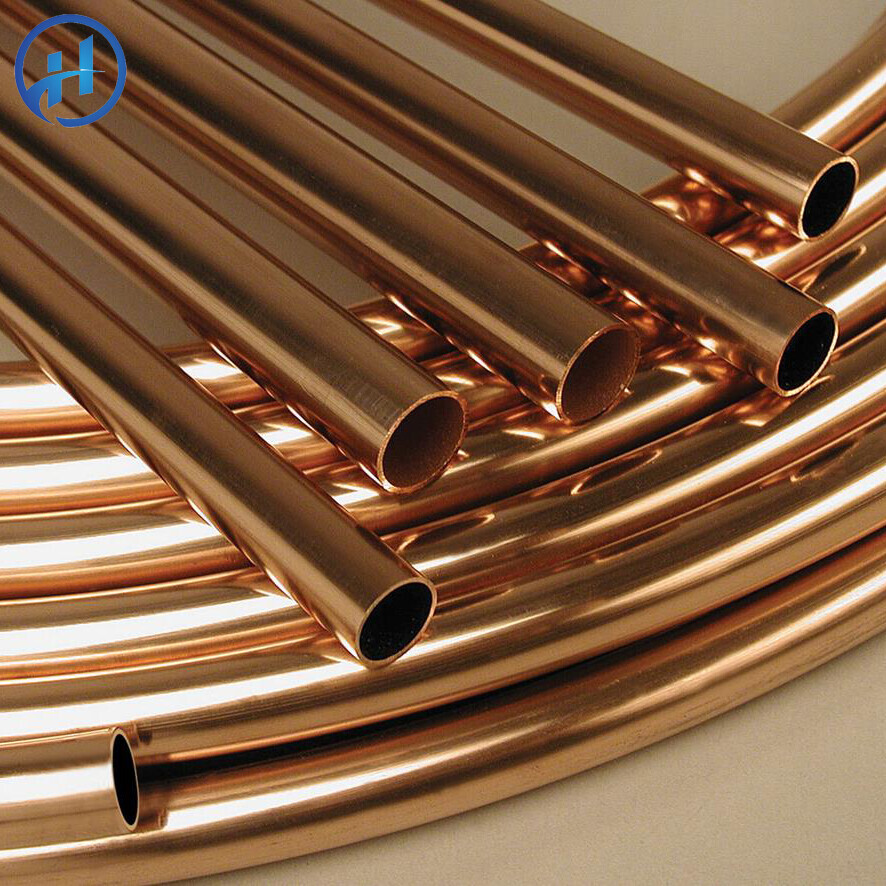

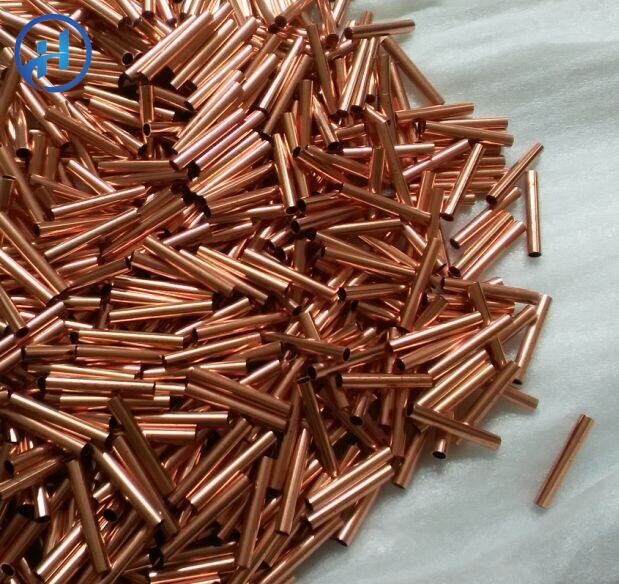

C10100/TU2 Copper Pipe

C10100 copper pipe is made from anly pure copper alloy containing more than 99.99% copper content, giving it excellent electrical and thermal conductivity. This high-purity copper is very popular in the electrical and electronic industries where high conductivity and good processability are required.

Phone : +86 13256775538

Whatsapp : +86 13256775538

Email : Shylock@hw-steel.com

Product Description

C10100 copper pipe has extremely high purity, not only giving it excellent electrical and thermal conductivity, but also providing good plasticity and ductility, making it highly flexible in processing. In addition, C10100 copper alloy also has exceptional corrosion resistance and can maintain stable performance in a range of environments, including marine environments. C10100 copper pipes can be processed in a variety of ways, including rolling, drawing, die casting and forging with high purity and good physical properties. C10100 copper pipes are commonly used in electrical and electronic industries such as cables, wires, and electrical connectors due to its excellent electrical and thermal conductivity. In power transmission and distribution systems, this copper alloy is the material of choice for high-performance conductive lines. In addition, due to the outstanding heat resistance and processability, C10100 copper pipes are also commonly used in the manufacture of various heat exchangers, radiators and other cooling system components.

Product Parameters

Outer Diameter	2mm-300mm, or customized	Wall Thickness	0.2mm-50mm, or customized
Length	Customized	Standard	ASTM, AISI, JIS, GB, DIN, EN
Brand	C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
Surface Finish	Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required
Certification	ISO, SGS, BV	Payment Method	FOB, CRF, CIF, EXW Acceptable
Port of Loading	Any port in China	Delivery Time	Received 30% after deposit 7-15 working days

Chemical Composition

CopperWith:	CalciumCa:	ZincZn:	LeadPb:	PhosphorusP:	MercuryHg:
≥ 99.90	≤ 0.0001	≤ 0.0001	≤ 0.001	≤ 0.0003	≤ 0.0001
SeleniumSe:	SulphurS:	Tellurium You:	BismuthBi:	OxygenO:	Impurity:
≤ 0.001	≤ 0.0018	≤ 0.001	≤ 0.001	≤ 0.001	-

Mechanical Properties

Tensile StrengthKb (MPa):	ElongationD10 (%):	ElongationD5 (%):
≥ 275	≥ 5	≥ 10

Scope of Application

Uses and Applications of Copper
Power Industry	Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
Electronic Industry	Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuitCopper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical Industry	The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosionVarious media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation Industry	In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraftCopper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical Industries	In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heatingThe induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light Industry	Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
Emerging Industries and High-tech Fields	Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.

Product Show

Video Showcase

Partner

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A: If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A: Standard export packaging or as required
