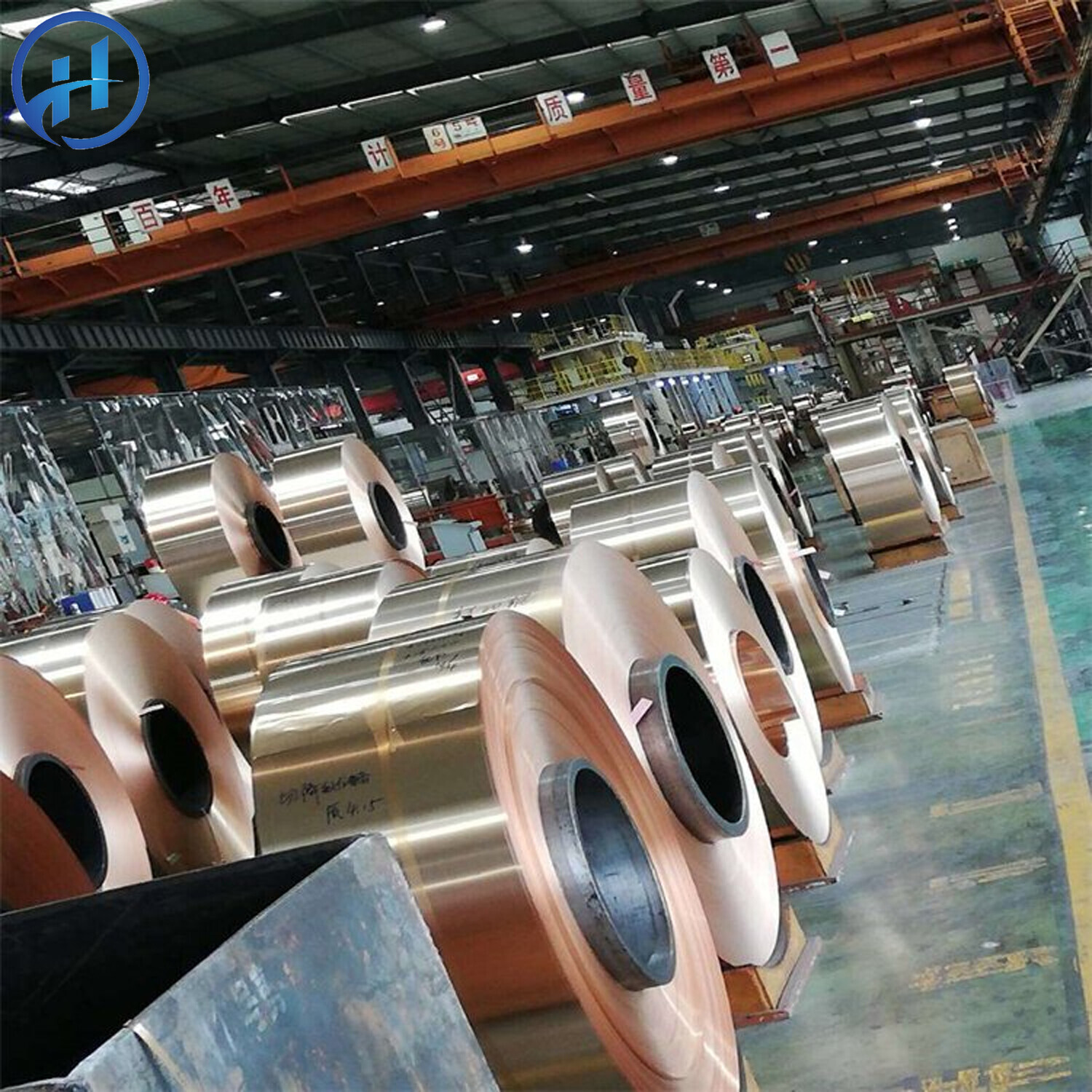

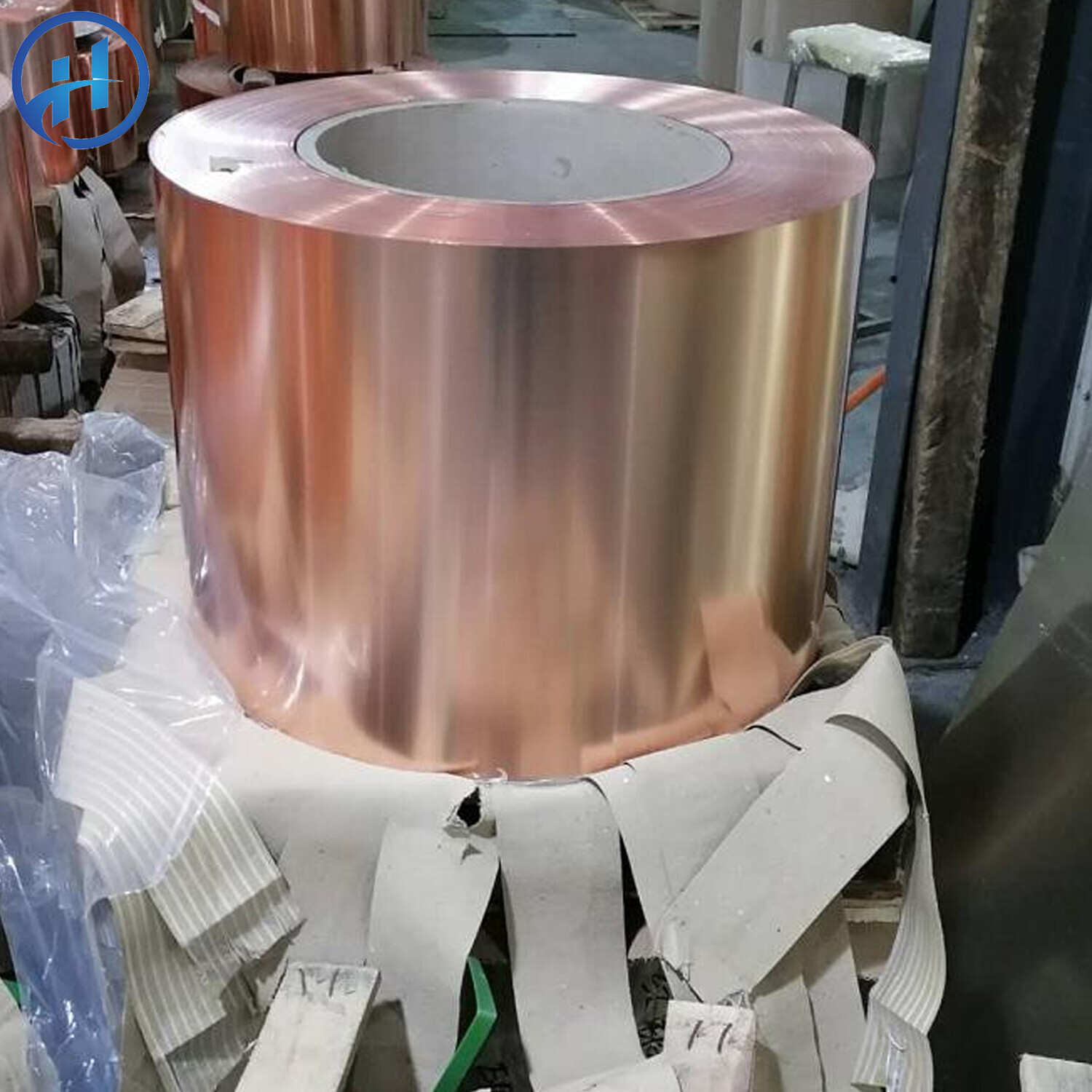

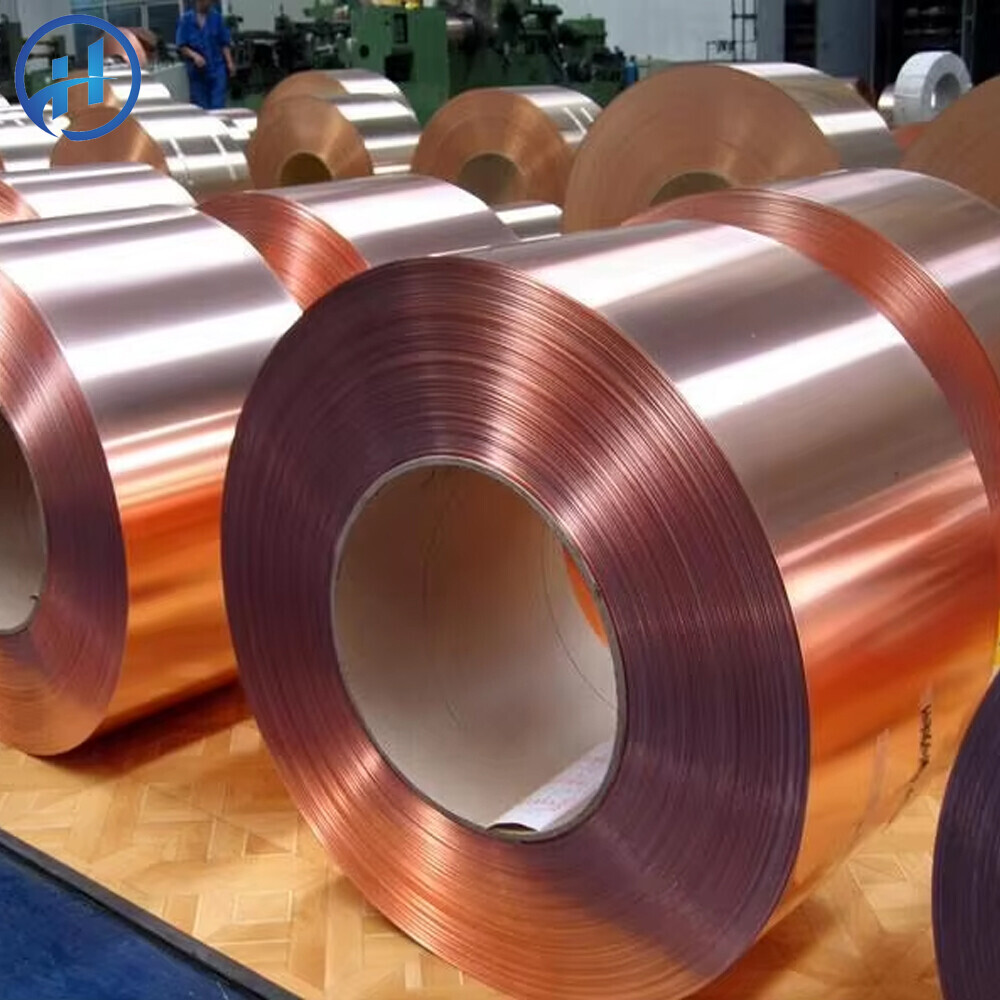

C12200/TP2 Copper Coil
C12200 coil is a high purity copper alloy, also known as EDM red copper, consisting mostly of copper and a small amount of phosphorus. C12200 coil is often used in electronic components, wire and cable, semiconductor equipment, chemical industry and other fields owing to good electrical conductivity, thermal conductivity and corrosion resistance.
Phone : +86 13256775538
Whatsapp : +86 13256775538
Email : Shylock@hw-steel.com
Contact Us

Product Description

C12200 copper coil features outstanding welding performance and cold bending performance, and generally has no tendency of "hydrogen disease". It can be processed and used in reducing atmosphere. However, it is not suitable to be processed or used in an oxidizing atmosphere. Containing phosphorus and more than 99.9% copper, C12200 copper coil has excellent antioxidant properties and corrosion resistance. Moreover, it has good electrical conductivity, thermal conductivity, and processing properties. And trace amounts of oxygen have little impact on electrical conductivity, thermal conductivity and processing properties.


Product Parameters

Thickness0.1-300mm, or customizedLength100-12000mm, or customized
Width10-3000mm, or customizedStandardASTM, AISI, JIS, GB, DIN, EN
BrandC10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
SurfaceGrinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required
Certification ISO, SGS, BV Payment MethodFOB, CRF, CIF, EXW Acceptable
Port of LoadingAny port in ChinaDelivery TimeReceived 30% after deposit 7-15 working days



Chemical Composition

Copper+SilverWith Ag:TinSn:PhosphorusP:LeadPb:NickelIt is:IronFe:
≥ 99.85≤ 0.010.013~0.050≤ 0.005≤≤ 0.01≤0.05
AntimonySb:SulphurS:ArsenicAs:BismuthBi:OxygenO:Impurities:
≤0.002≤ 0.005≤ 0.005≤ 0.002≤ 0.01≤ 0.15



Mechanical Properties

Tensile StrengthKb (MPa):ElongationD10 (%):Hardness:
215~275≥2555~100HV



Scope of Application

Uses And Applications of Copper
Power IndustryPower transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
Electronic IndustryElectric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuitCopper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical IndustryThe main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosionVarious media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation IndustryIn the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraftCopper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical IndustriesIn addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heatingThe induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light IndustryCopper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
Emerging Industries and High-tech FieldsCopper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.

Product Show


Contact Us

Video Showcase

Partner

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A:  If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A:  Standard export packaging or as required
